XVive PX - Portable 3-Channel Mixer

Start 360°

3-Kanaals mixer en hoofdtelefoonversterker voor In-Ear Monitoring

Volledige controle over de In-Ear Mix dankzij een 3-kanaals design
Ideaal voor zangers, keyboardspelers, drummers, gitaristen, bassisten en andere muzikanten
Compact en lichtgewicht design
Cat 5-kabel verzendt drie audiokanalen en 9 volt (PoE) stroom
PoE / batterij-schakelaar voor Cat 5 9V PoE-stroomvoorziening of 2x AAA-batterijen
Met batterijvoeding voor maximaal 5 uur batterijduur met 2 AAA-batterijen (niet inbegrepen bij de levering)
De DIP-schakelaars in de PX kunnen worden gebruikt om te bepalen hoe elk kanaal wordt gespreid: links, rechts of links + rechts
Controls voor Volume / On-Off, Input 1, Input 2, Input 3, schakelaar voor PoE / batterij, DIP-schakelaar voor L / R / L + R per kanaal, status-LED
Praktisch, extern toegankelijk batterijvak met clipsluiting
3 Gebalanceerde XLR-aansluitingen om aan te sluiten op een mengpaneel
3 Gebalanceerde XLR naar ongebalanceerde 6,3 mm jack adapters (inbegrepen bij de levering)
Stevige Belt Clip om te bevestigen aan een riem of broeksband
Schokbestendige metalen behuizing
3,5 mm Stereo jack hoofdtelefoonuitgang
Ethernet-ingang
Max. Output: 2 x 150 mW bij 16 Ohm
Stroomvoorziening via optionele 9V DC netadapter 2,1 mm x 5,5 mm holle connector, polariteit (-) binnenin of 2 x AAA batterijen (niet inbegrepen bij de levering)

Inbegrepen bij de levering:

PX-A
PX-B
EC25-kabel
3x XLR naar 6,3 mm jack adapter

Opmerking: Registreer uw product op www.w-distribution.de/Warranty en verleng de garantie tot 4 jaar.

Let op! Registreer uw aankoop op shop.warwick.de/en/warranty-registration voor een verlengde garantie van 4 jaar.

30 dagen Money-back garantie

Drie jaar Thomann garantie

Leverbaar sinds Juni 2024
artikelnummer 593235
verkoopseenheid 1 stuk
Powered by: Battery
Integrated Mixer Yes

€ 109

Alle prijzen incl. btw

Best seller rang

in kabelgebonden in ear systemen

Flexible personal monitoring system

The XVive PX Portable 3-Channel Mixer System is a portable and wired monitoring system which combines a high-quality headphone amplifier and a pocket-sized three-channel mixer, giving musicians and performers the ability to create their personal monitor mixes "on the fly" during live events, recording sessions, and even practice. The three audio channels are transmitted via a single Cat 5 Ethernet cable and can be routed left, right or centre in the mixer. Instrumentalists and vocalists can thus freely choose between a stereo and a mono signal or three mono signals, and then set the levels. The XVive PX Portable 3-Channel Mixer System can be powered by two AAA batteries, a 9V DC adapter (not provided), and - interestingly - PoE (Power over Ethernet).

Sound and power via CAT5

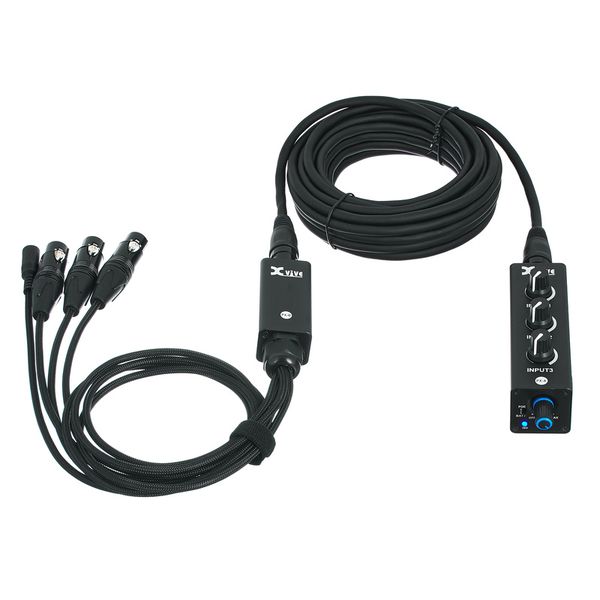

The included XVive PX-B 3-Channel Snake plugs into the mixing console (or other sound source) via three XLR connectors (6.3mm unbalanced jack adapters are also provided, just in case) and the three signals are carried to a Cat 5 Ethernet socket, along with 9V of PoE (Power over Ethernet), when available. The EC25 Cat 5 cable then delivers the audio and power to the XVive PX-A 3-Channel Mixer, which features individual volume controls for each chosen channel, as well as a master headphone output. The three signals can be panned left, right, or left + right (centre) via DIP switches situated in the battery compartment. The headphone amplifier delivers a maximum output of 150mW x 2 at 16 ohms, providing plenty of power. A sturdy clip allows the PX-A 3-Channel Mixer to be safely secured to a waistband or belt.

Xvive PX - Portable 3-Channel Mixer, Detail

A complete personal monitoring solution

The XVive PX Portable 3-Channel Mixer System comprises the PX-A 3-Channel Mixer, the PX-B 3-Channel Snake, an EC25 CAT5 cable, and three XLR-to-jack adapters. Bought as a set, these items are more competitively priced, however, the PX-A and PX-B can also be purchased separately if required. What is more, this already flexible monitoring system can be further expanded upon using the PX-H 5-Channel Hub, which can distribute the signal and PoE to five PX-A 3-Channel Mixers simultaneously, using a single PX-B 3-Channel Snake and EC25 cable - providing a simple solution for musicians and vocalists, during live concerts or recording sessions, where performers can individually tune the monitor mix to their liking.

About Xvive

Xvive Audio officially entered the market in 2012 with its compact U2 wireless guitar system. Since then, the company has also been involved in the development of wireless microphone technology. Its catalogue also includes effects pedals, such as the Signature Series, which were developed in partnership with guitarist Thomas Blug. The products are designed by an American team, based in Pasadena, California, which is composed of musicians and engineers and draws on decades of professional experience. Its lead designer, Howard Davies, was previously employed at Electro Harmonix and Pigtronix, among others. Xvive Audio's goal is to create products that deliver exceptional sound and build quality, while remaining affordable for any musician.

For individual monitor mixes

Singers often need to readjust the balance between their voice and the other musicians in their monitor mix during a performance. A typical setup in this case would be vocals on the first input, guitars and keyboard mix on the second, and finally bass and drums on the third. For drummers, hearing the drums, bass, guitar, and vocals loud and clear is crucial in order to navigate the song structure, subtly interact with other band members and of course remain in lockstep with the bassist at all times. In this case, a typical setup might be bass on the first input, drums on the second input, and finally guitar and vocals on the third input.

2 Klantenbeoordelingen

5 2 Klanten 4 0 Klanten 3 0 Klanten 2 0 Klanten 1 0 Klanten

5 / 5

features

draagcomfort

geluid

afwerking

Review richtlijnen

2 Recensies

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Coole sache

Rönntsgi 13.07.2024

Habe es heute ausprobiert, und es ist recht cool. Sound klingt gut. Schnell installiert. gut verarbeitet. Leider hat es keinenn Netzadapter dabei, denn muss man nun bestellen und hofen dass es dern richtige ist! man muss sonst mit Batterien auskommen. Ein Stromanschluss wäre vorhanden, schade dass nicht auch ein Netzteil dabei ist. Was ich schlecht finde.

draagcomfort

features

geluid

afwerking

Evaluatie melden

Bent u van mening dat deze evaluatie om een of andere reden onjuist of onacceptabel is? Geef ons s.v.p. de reden voor uw bewering in de volgende tekstbox en – indien mogelijk – uw E-mailadres voor verdere vragen.

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Je recommande

Momogroove 02.04.2025

Batteur, j’utilisais une mixette pour mes ears. Le xvive remplace haut la main la table, tant au niveau du son, la facilité de câblage, l’ergonomie et le réglage rapide des 3 voies. Moins de câbles et plus de confort. Je recommande
